How to set up Port Forwarding on the Tenda N60 Router - Micro Center

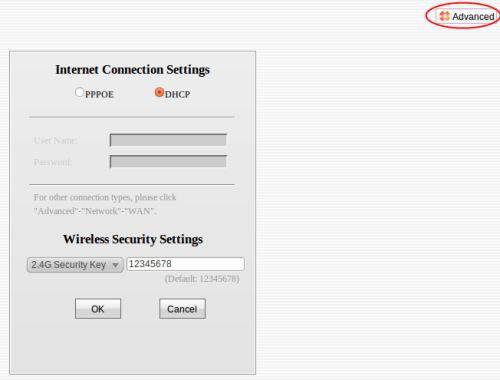

<main> <article class="userContent"> <p>This technical article will show how to configure the N60 router to forward specific ports to a particular computer in the network.</p><p><br></p><p>1. First, we need to access the router's configuration page. This can be done by opening an internet browser. Next, enter <strong>192.168.0.1</strong> into the address bar, and press <strong>Enter</strong> on your keyboard.</p><p>2. Log in to the router. This can be done by using admin as both the username and password unless they have been changed.</p><p>3. Once logged in, the main screen shown below will appear. Click on <strong>Advanced</strong> in the upper-right.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8722_HOW5012511B-001.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8722_HOW5012511B-001.gif" alt="Tenda Configuration Settings, Advanced" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>4. Next, determine the IP address of the computer having ports forwarded to it. This can be done by clicking on <strong>Network</strong> in the Navigation Menu, then clicking on <strong>DHCP</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8723_HOW5012511B-002.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8723_HOW5012511B-002.gif" alt="Tenda Navigation Menus, DHCP" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>5. Once the DHCP screen is up, click on <strong>Client List</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8724_HOW5012511B-003.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8724_HOW5012511B-003.gif" alt="Client List" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>6. With the Client List open, there will be a list of computers attached to the network. Typically, the easiest way to determine which computer to forward to is by the name of the machine. In this example, the computer in question is named HOTSwinbook and its IP Address is 192.168.0.139. Make a note of the IP address associated with the computer to forward to.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8725_HOW5012511B-004.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8725_HOW5012511B-004.gif" alt="Client List" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>7. With this information in hand, go to the Virtual Server page. This can be done by clicking on <strong>Advanced</strong>, then clicking on <strong>Virtual Server</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8726_HOW5012511B-005.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8726_HOW5012511B-005.gif" alt="Navigation Menus, Virtual Server" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>8. With the Virtual Server page open, click on the <strong>Add</strong> button.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8727_HOW5012511B-006.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8727_HOW5012511B-006.gif" alt="Virtual Server, Add" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>9. Once the page loads, there are a few different fields to fill in. The dropdown menu that says <strong>DNS (53)</strong> can be ignored unless the port in question is in the list. This list is designed for quick forwarding of commonly used ports.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8728_HOW5012511B-007.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8728_HOW5012511B-007.gif" alt="Virtual Server Port Settings" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>10. Enter the port that needs forwarded in both the <strong>WAN</strong> and <strong>LAN</strong> boxes, and then enter the IP Address of the computer to forward to into the <strong>Private IP</strong> field. If the port is TCP or UDP specific, this can be selected in Protocol, or it can be left on both if you are unsure or if the protocol is not specified. In this example, we are using port 11529 over both TCP and UDP. Once the information is entered, click on <strong>Save</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8729_HOW5012511B-008.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8729_HOW5012511B-008.gif" alt="Save Changes" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>11. The next screen that appears will show a list of ports being forwarded, and where they are forwarded to. In this example, we have forwarded the port 11529 to the IP 192.168.0.139.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8730_HOW5012511B-009.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8730_HOW5012511B-009.gif" alt="Virtual Server Settings" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>Repeat these steps for any other computers and ports that need to be configured for forwarding.</p> </article> </main>
