How to set up PTZ on a WinBook DVR (D60 D70 D04 series) - Micro Center

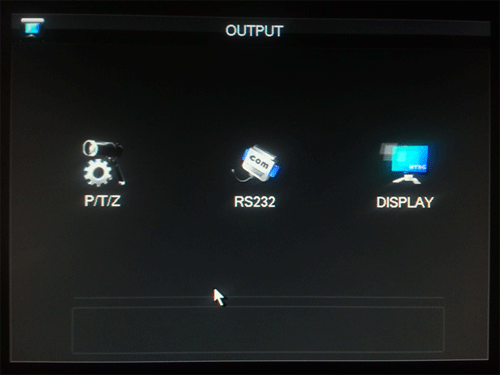

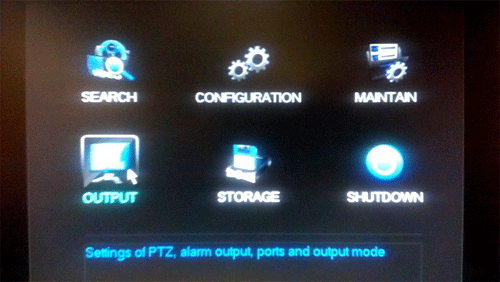

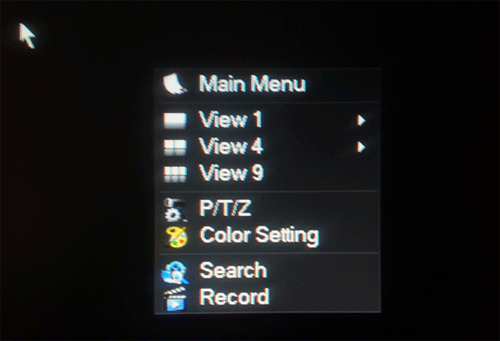

<main> <article class="userContent"> <p>This article will show you how to configure a PTZ camera on a WinBook D60, D70 or D04 series DVR.</p><p><br></p><p>1. Right click anywhere on the screen and choose the <strong>Main Menu</strong> option.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8844_HOW5012771B-001.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8844_HOW5012771B-001.gif" alt="8844_HOW5012771B-001.gif" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>2. From the Main Menu choose <strong>Output</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8845_HOW5012771B-002.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8845_HOW5012771B-002.gif" alt="8845_HOW5012771B-002.gif" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>3. From the Output menu choose <strong>PTZ</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8846_HOW5012771B-003.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8846_HOW5012771B-003.gif" alt="8846_HOW5012771B-003.gif" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>4. Look at your PTZ camera or manual for the camera and locate the <strong>Channel</strong>, <strong>Protocol</strong>, <strong>Address</strong>, and <strong>Baudrate</strong>. Then enter this into the PTZ settings then click <strong>OK</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8847_HOW5012771B-004.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8847_HOW5012771B-004.gif" alt="8847_HOW5012771B-004.gif" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>5. Now <strong>right click </strong>on the main screen again, this time click <strong>P/T/Z</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8848_HOW5012771B-005.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8848_HOW5012771B-005.gif" alt="8848_HOW5012771B-005.gif" height="180" width="320" loading="lazy"></img></a> </div> </div> <p></p><p><br></p><p>6. From this screen, you can now control the Camera.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://www.microcenter.com/Content/Content%20Graphic/Images/8849_HOW5012771B-006.gif" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://www.microcenter.com/Content/Content%20Graphic/Images/8849_HOW5012771B-006.gif" alt="8849_HOW5012771B-006.gif" height="180" width="320" loading="lazy"></img></a> </div> </div> <p><br></p> </article> </main>
