How to Install & Enable On-Screen Display in MSI Afterburner (RTSS) - Micro Center

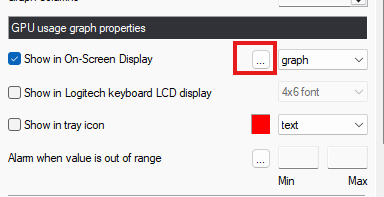

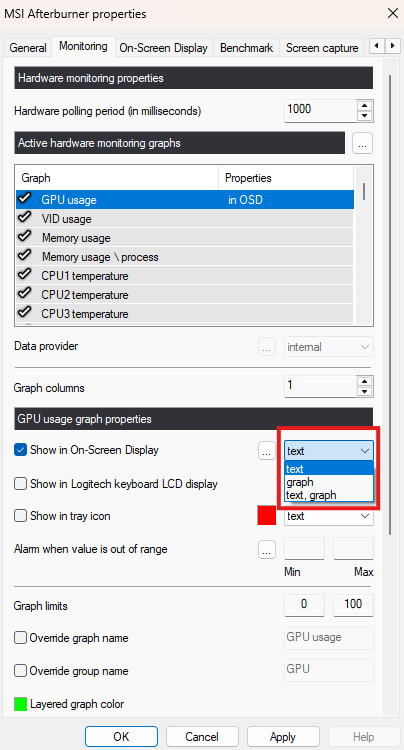

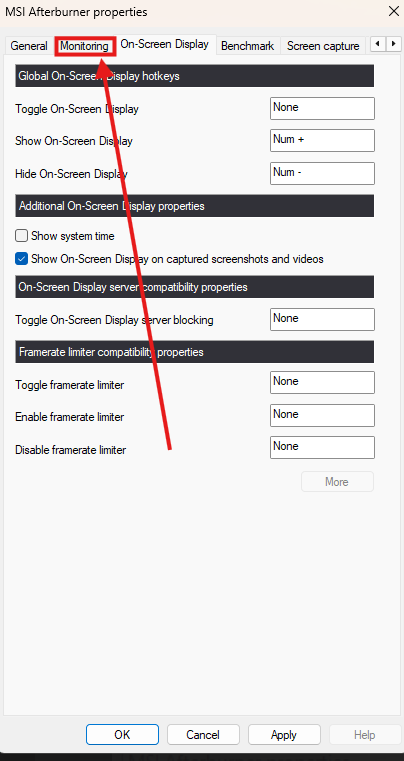

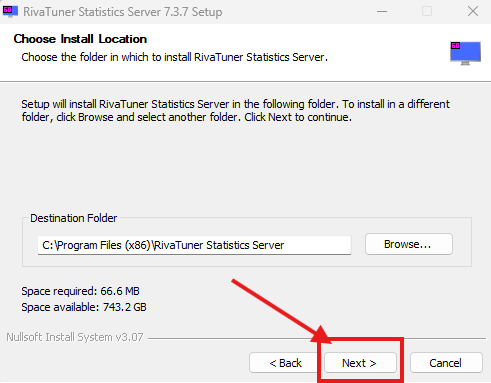

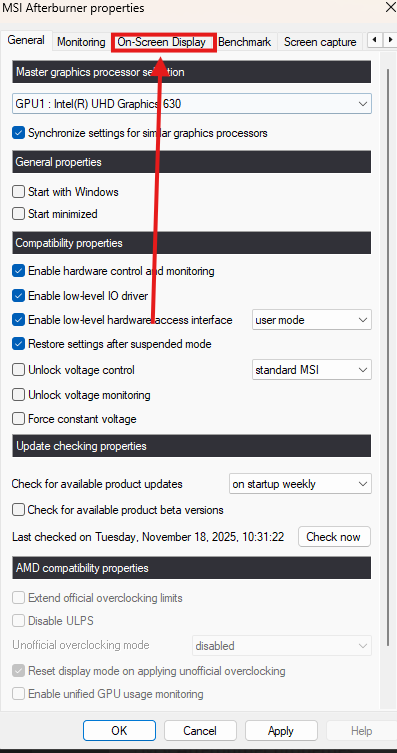

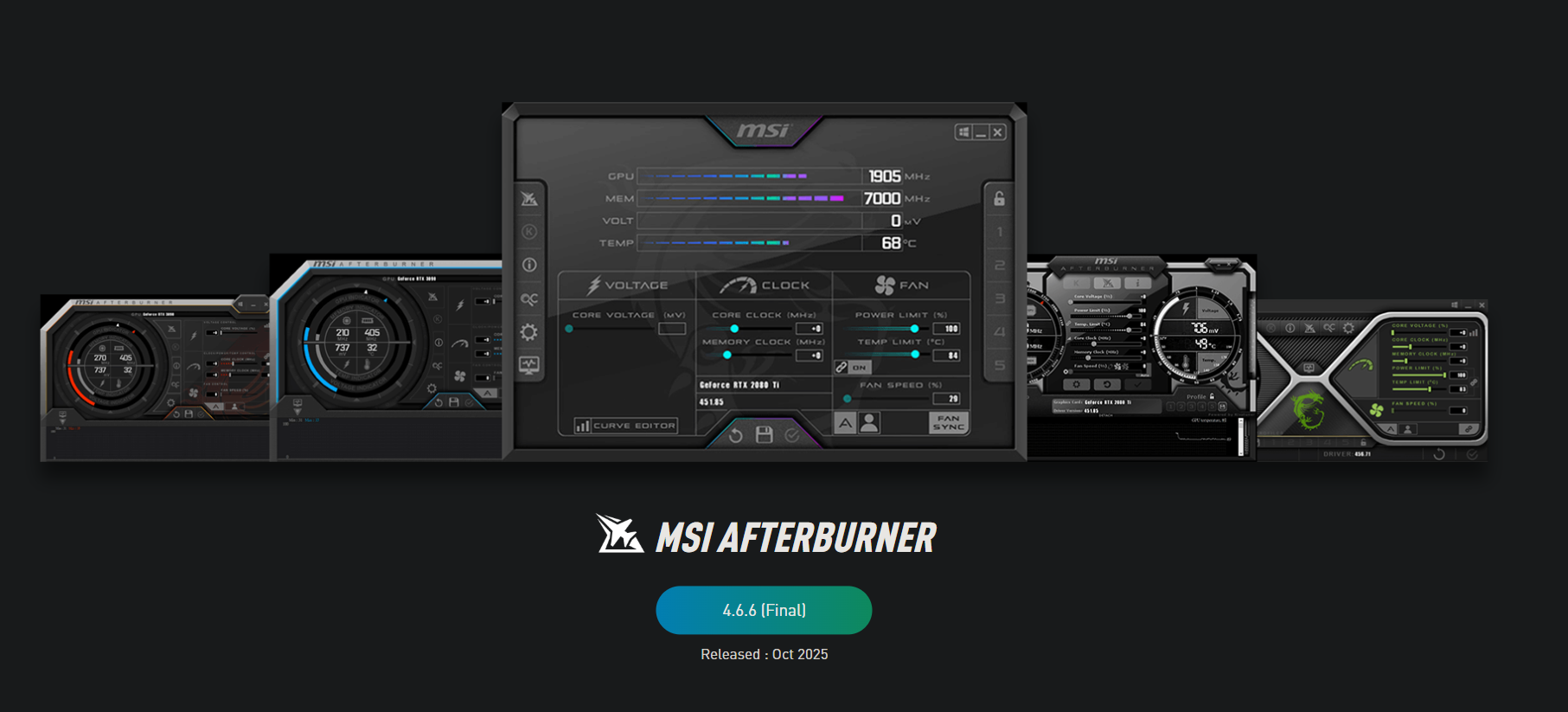

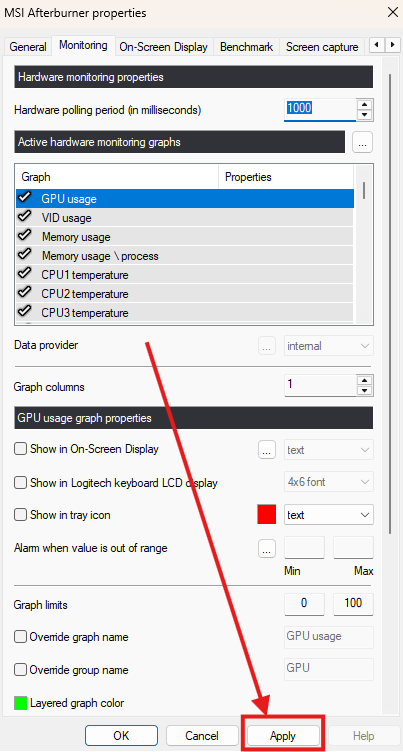

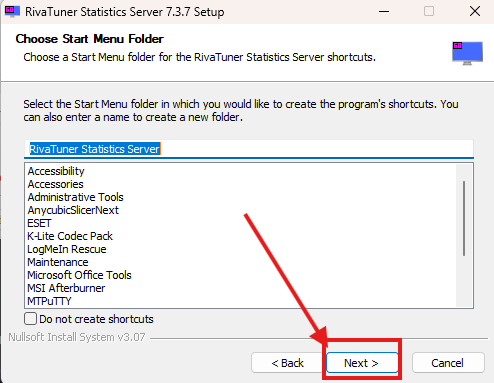

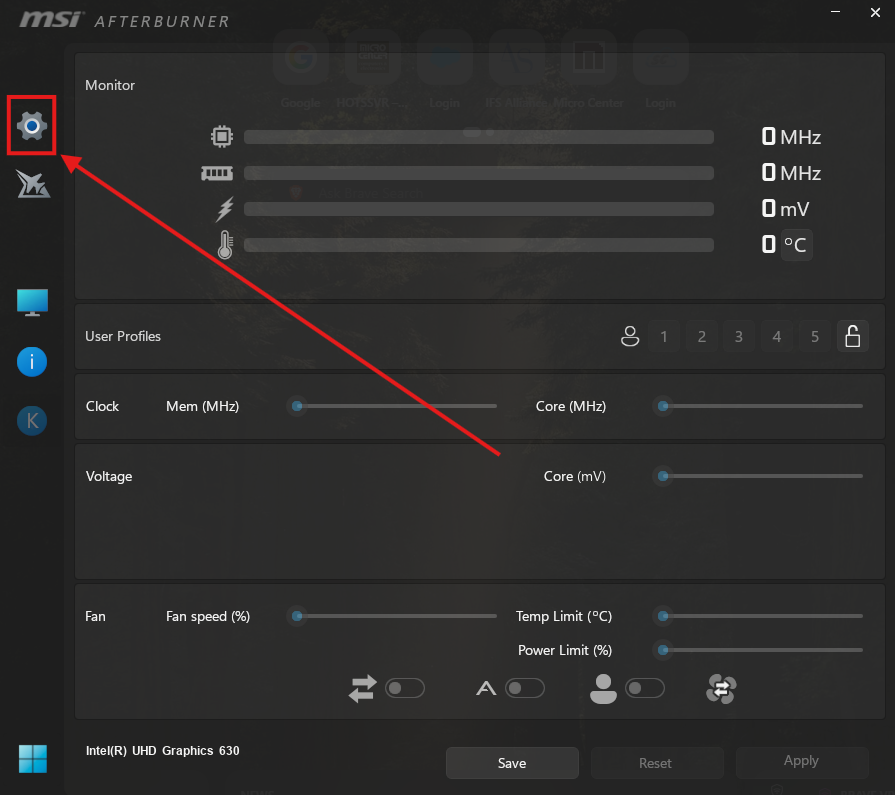

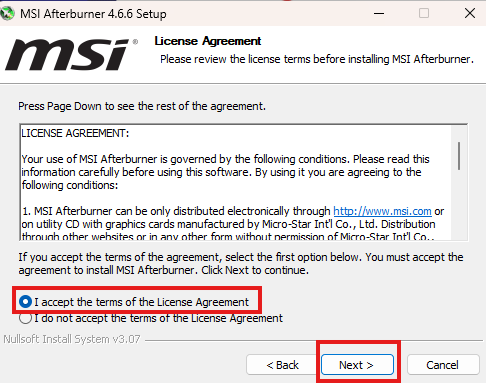

<main> <article class="userContent"> <p>Have you ever wondered how your computer is performing while gaming? Do you feel like your system might be running hot, or that your performance is lacking and you're trying to figure out why?</p><p>This guide will introduce you to a very helpful set of troubleshooting tools known as MSI Afterburner and RivaTuner Statistics Server (RTSS).</p><p>MSI Afterburner's primary feature is GPU overclocking, however for the purpose of this guide, we will be utilizing a very handy secondary feature to enable OSD or On-Screen Display to allow you to monitor a large variety of sensors and statistical information about your systems performance. From CPU/GPU thermals & utilization all the way to in-game FPS, this software is a staple for troubleshooting gaming performance in real-time. Before we begin, a quick disclaimer.</p><p><strong>This third party software is to be used at your own risk. Before using it in video games, check with the developers to make sure it is allowed, as the software hooks into the Direct3D frame buffer to capture its performance information and may be viewed as a "cheat" by some anti-cheat software.</strong></p><p>With that out of the way, let's get started!</p><p><strong>Step 1:</strong> Download the latest version of MSI Afterburner from the manufacturer's website: <a href="https://www.msi.com/page/afterburner" rel="nofollow noreferrer ugc">https://www.msi.com/page/afterburner</a></p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/iv/aeh8txqaiows.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/iv/aeh8txqaiows.png" alt="aeh8txqaiows.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Step 2:</strong> Extract the downloaded software to an easily accessible location and run the installer.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/ds/dwbjmj5mcncw.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/ds/dwbjmj5mcncw.png" alt="dwbjmj5mcncw.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Step 3:</strong> During installation, make sure you keep RivaTuner Statistics Server checked, as we will need that software to utilize the OSD (on-screen display) functionality.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/lv/m24l0xn316bo.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/lv/m24l0xn316bo.png" alt="m24l0xn316bo.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Step 4:</strong> Complete the installation process for both MSI Afterburner and RTSS. Remember to switch over to the RTSS installation window as it may not do so automatically. </p><p><strong>NOTE:</strong> The installer may install additional DirectX libraries if they are not currently available on your system, this is normal.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/m8/mjvca3jggqru.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/m8/mjvca3jggqru.png" alt="mjvca3jggqru.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Step 5:</strong> Launch MSI Afterburner. </p><p><strong>NOTE:</strong> You may be greeted with a popup from RTSS informing you that some information cannot be hooked right now. This is completely normal, it simply means some applications are already open and that they cannot be monitored until they are closed and reopened.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/90/z94hzn07i9ga.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/90/z94hzn07i9ga.png" alt="z94hzn07i9ga.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Step 6:</strong> With MSI Afterburner open, click the Gear⚙️icon to access the settings page.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/ft/xo7a2u2vzmdi.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/ft/xo7a2u2vzmdi.png" alt="xo7a2u2vzmdi.png"/> </a> </div> </div> <p><p><br></p></p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/f5/svkcbzce8buz.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/f5/svkcbzce8buz.png" alt="svkcbzce8buz.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Step 7:</strong> Navigate to the tab labeled "On-Screen Display". This page will allow us to set a hotkey to show/hide the on-screen display so that it's not always in your way while gaming, and will allow you to turn it on when needed.</p><p>I recommend using keys that are not commonly used while gaming. For this guide, I'll be using the - and + signs on the numpad.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/co/7fcatnd34cjd.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/co/7fcatnd34cjd.png" alt="7fcatnd34cjd.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Step 8:</strong> With your hotkeys established, navigate to the <strong>Monitoring</strong> tab. This is where we will be picking and choosing the components we would like to monitor. To monitor a component or sensor, click the hardware sensor then check the box labeled <strong>"Show in On-Screen Display"</strong>. If a sensor is grayed out, click the checkmark icon to the left of the sensor. Repeat for each component or sensor you'd like to monitor. </p><p><strong>Note:</strong> The sensors you choose to monitor will be subjective, however, I highly recommend starting with GPU temperature, GPU usage, Memory usage, Core clock, CPU temperature, CPU usage, CPU clock, RAM usage, Framerate and Frametime. </p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/dl/5eoti11she5q.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/dl/5eoti11she5q.png" alt="5eoti11she5q.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Step 9:</strong> Finally, apply your settings and launch the game or benchmarking application you are using to test your system performance. By default, the performance statistics will be in the top left corner of the screen.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/dq/ghgksphbi3n8.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/dq/ghgksphbi3n8.png" alt="ghgksphbi3n8.png"/> </a> </div> </div> <p><p><br></p></p><p><strong>Extra tips: </strong>If you'd prefer seeing graphs over text, you can select the drop down next to <strong>"Show in On-Screen Display"</strong> to enable a graph. This is extremely helpful when monitoring Framerate and Frametime data, as it will help illustrate when your performance dips. </p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/od/y4v64katj9r0.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/od/y4v64katj9r0.png" alt="y4v64katj9r0.png"/> </a> </div> </div> <p><p><br></p></p><p>You can also click the box to the left of the drop down menu with <strong>"..."</strong> to customize the colors of the OSD text.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/q3/8gzwhxsf75uw.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/q3/8gzwhxsf75uw.png" alt="8gzwhxsf75uw.png"/> </a> </div> </div> <p><p><br></p></p><p>If you want these settings to persist through restarts without having to launch afterburner, you can enable the software to run at startup. Go to <strong>Settings </strong>and check <strong>"Start with Windows"</strong> and <strong>"Start minimized"</strong>.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/nb/6jb06qcqbfm9.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/nb/6jb06qcqbfm9.png" alt="6jb06qcqbfm9.png"/> </a> </div> </div> <p><p><br></p></p><p>Make sure you allow RTSS to start with Windows as well so everything is set up to work properly.</p><div class="embedExternal embedImage display-large float-none"> <div class="embedExternal-content"> <a class="embedImage-link" href="https://us.v-cdn.net/6031942/uploads/editor/9t/t9xcxl5uae15.png" rel="nofollow noreferrer noopener ugc" target="_blank"> <img class="embedImage-img" src="https://us.v-cdn.net/6031942/uploads/editor/9t/t9xcxl5uae15.png" alt="t9xcxl5uae15.png"/> </a> </div> </div> <p><p><br></p></p><p>That's all! You can now monitor your performance while gaming or benchmarking.</p> </article> </main>
