Your desktop may or may not have a video card inside it. If your desktop computer does have a video card, then you will NEED to use the ports of the video card to receive any video signal.
You can usually tell if there is a video card in your desktop if you see the video ports are horizontal and are usually found away from the USB Ports on the back of the computer. You may need to add a video card if your desktop computer doesn’t have enough video ports.
With a video card, here is how to get connected:

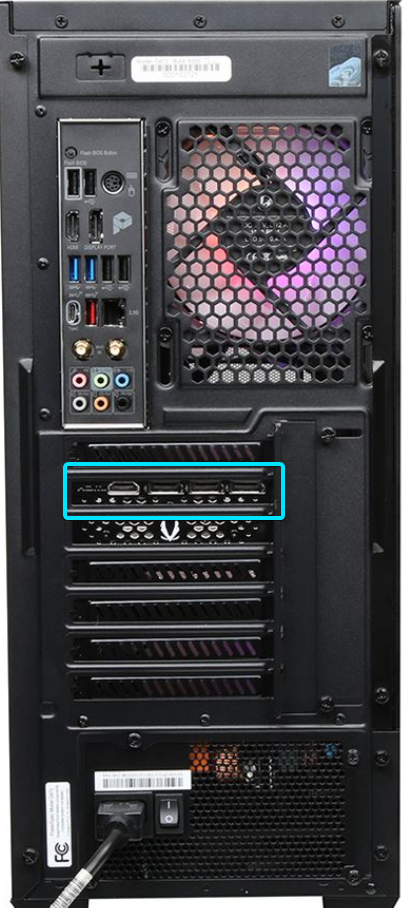

1. Find the Video Ports you have on the back of your Desktop, they should be found about halfway down the back of the computer. In the example picture, this video card has 3 DisplayPorts and 1 HDMI Port.

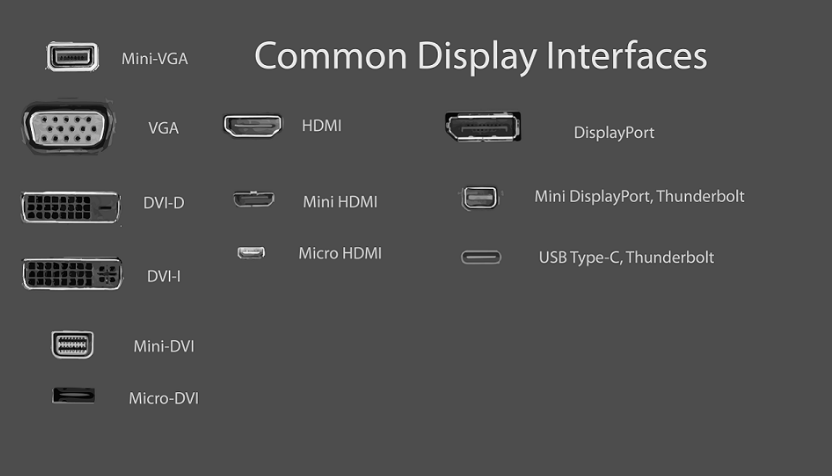

If you do not know which ports your desktop computer has, please check this chart:
If you do not see any ports halfway down the back of the computer, please check our guide for connecting to a desktop without a video card.
2. Connect to the Video Ports on the back of your computer to your monitors, then turn on the system and sign in.
NOTE: When at the sign-in screen, only one monitor will display. Once signed in to your PC, you should get your multiple monitors but they may not be set up correctly just yet.

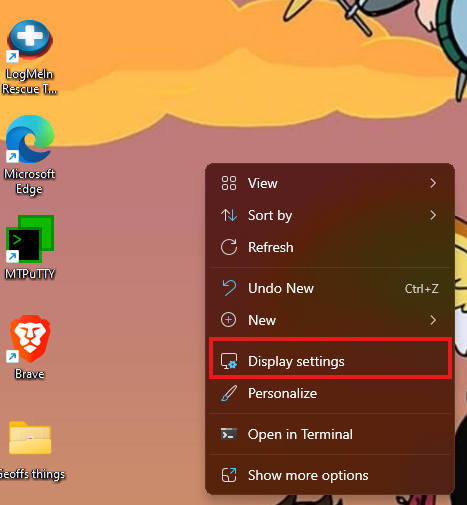

Now, we need to set up some settings for the multiple monitors. Right-click anywhere on your desktop and select Display settings from the list of options on the right-click menu.

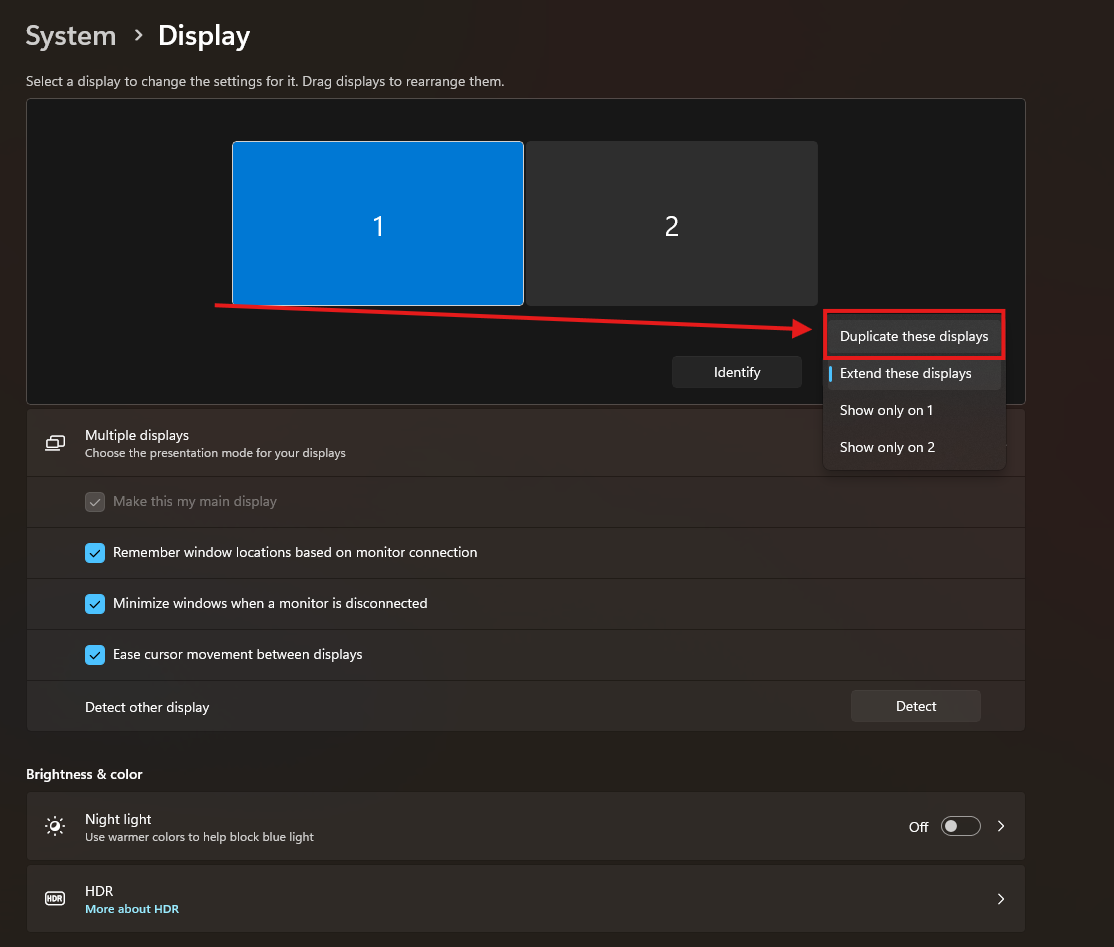

3. In case your monitors are mirroring each other and not one combined workplace/separate displays, you will want to select this box underneath and change it to “Mirror desktop to this display”.

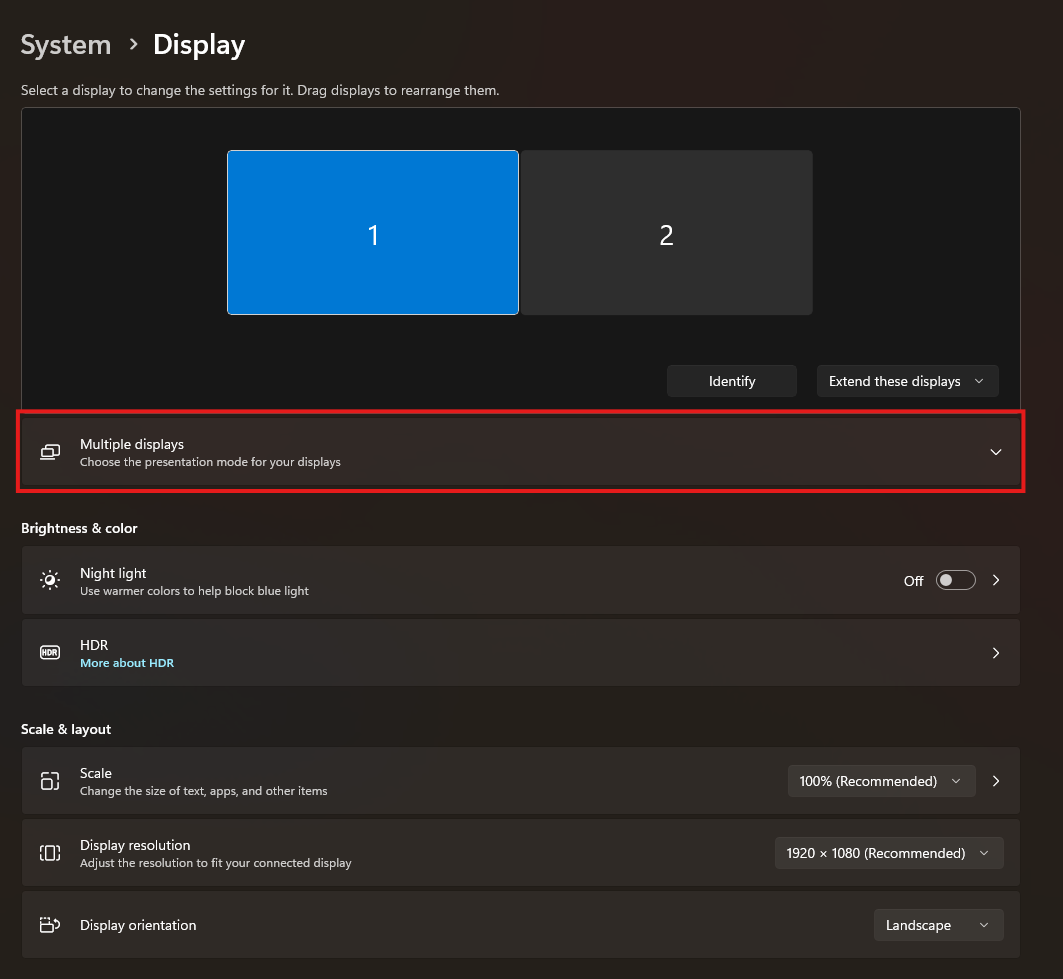

4. You should now be in your Display Settings on your PC and should be seeing rectangles equal to the amount of monitors you have connected.

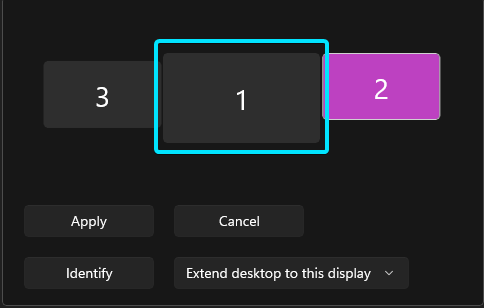

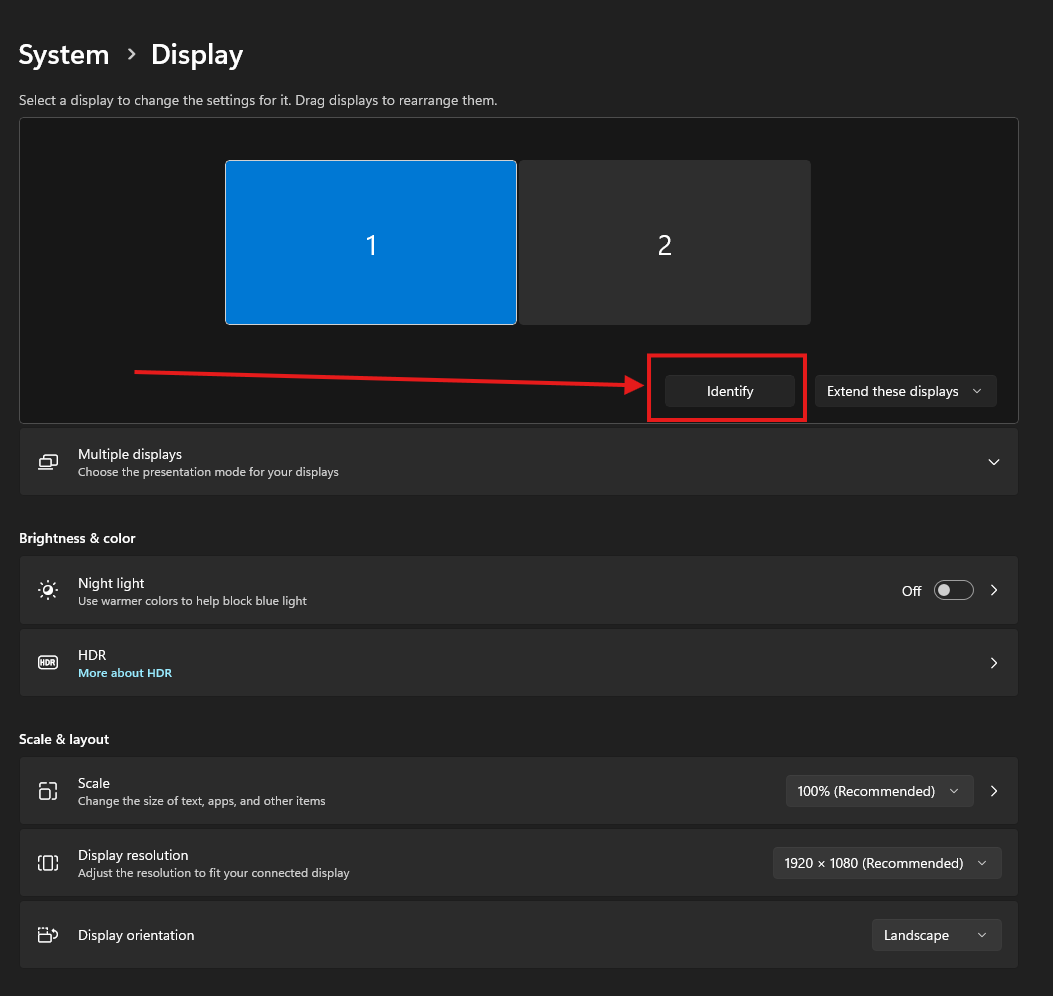

Next, you want to click Identify and it should show numbers (1, 2, 3...etc.) on your monitors, using these numbers drag the monitors with the corresponding number into the formation you have your monitors.

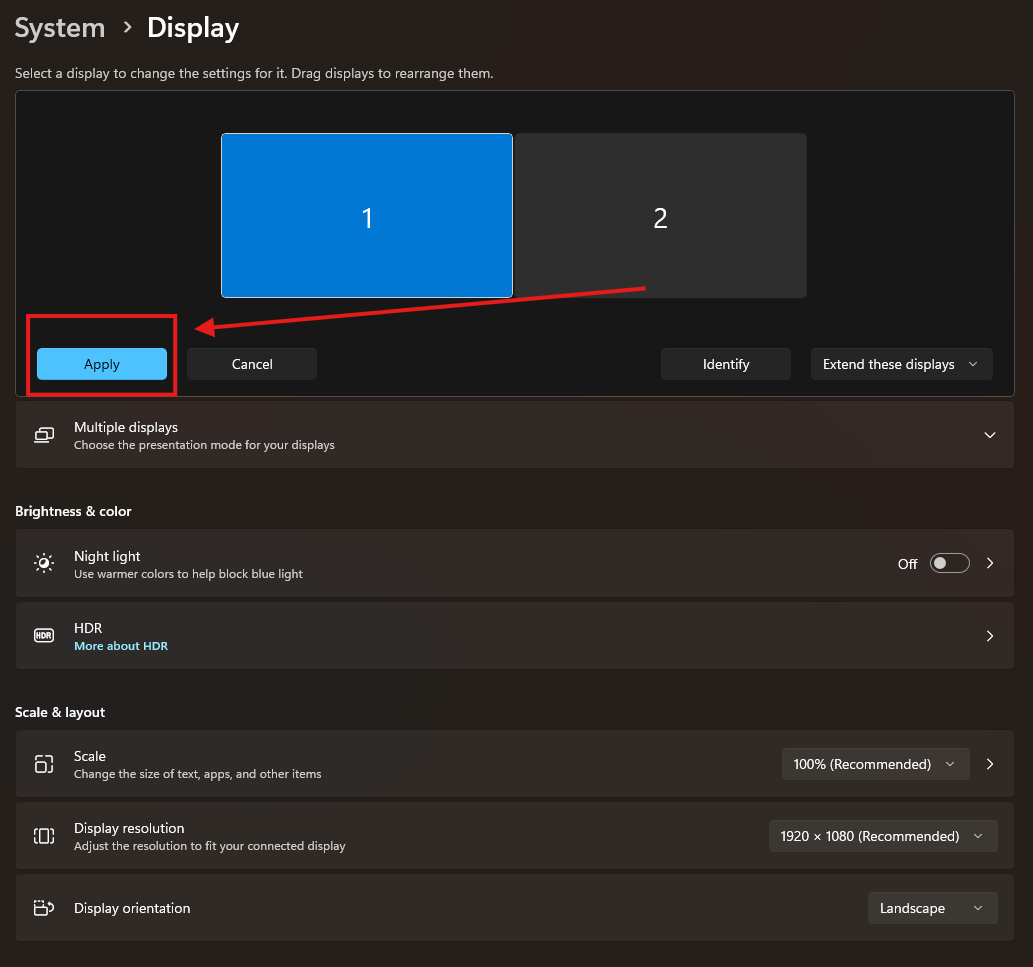

Then, click on Apply when they are in the proper position. In my example, my monitor that has the number 1 is in the middle, but your system may vary from our example settings.

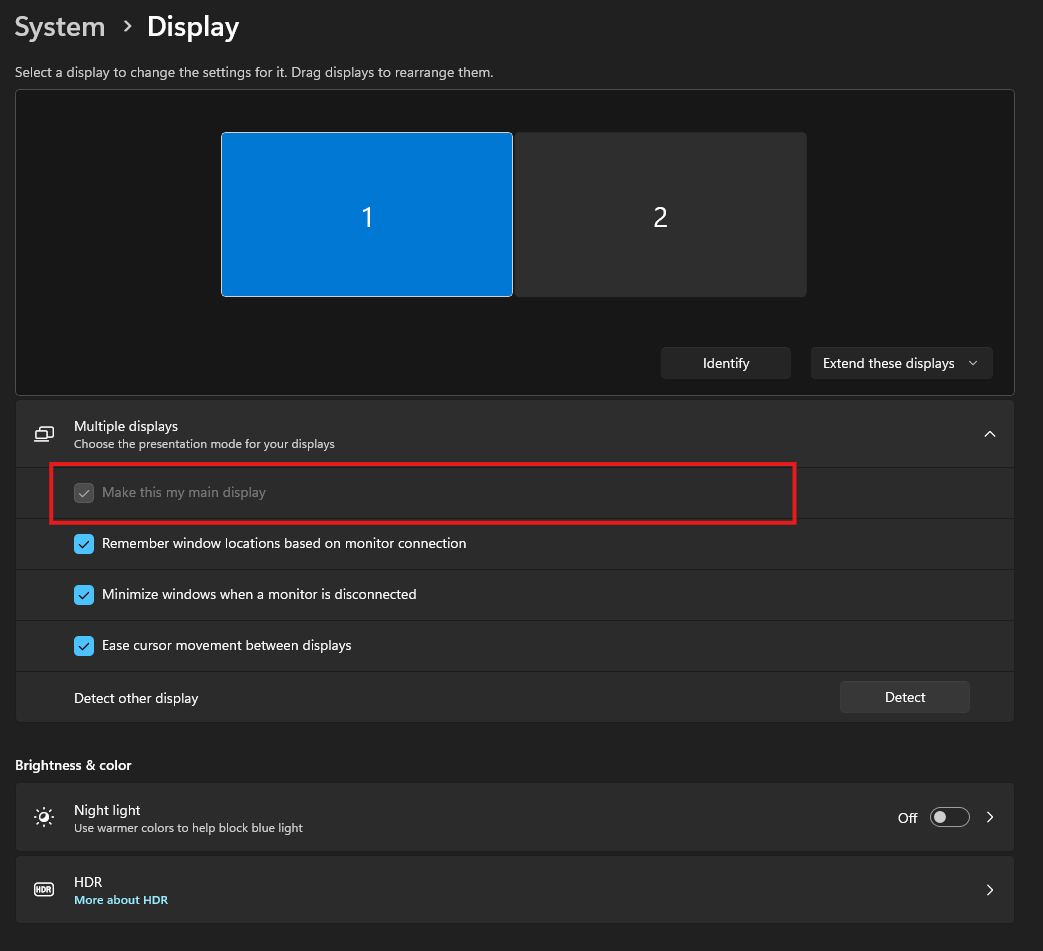

5. One of your multiple monitors will be the “Main Display” where programs will open by default and where most of your programs' shortcuts will be placed. Select the monitor you want as your main, it should highlighted (in my case it is purple but it depends on what color you have set as your accent color) then select “Make this my main display
That's it, now you should have additional displays up and running. Keep in mind you can drag/arrange the monitors here in Display Settings at any time in case it is not set up to your liking.
